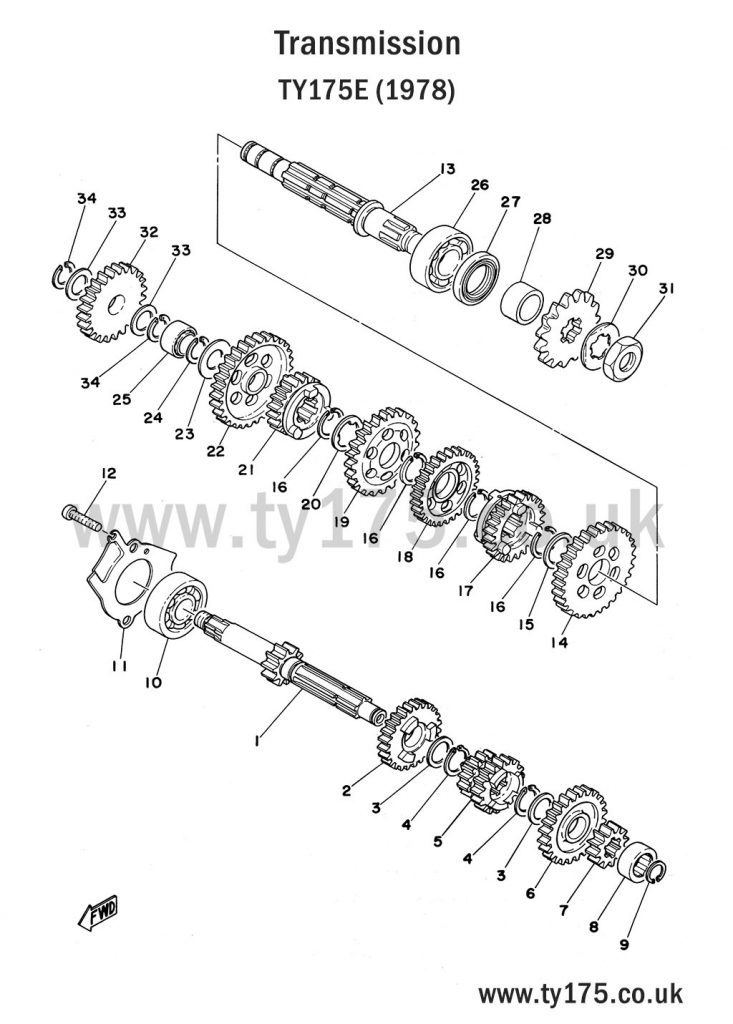

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | MAIN AXLE (11T) | 525-17411-00 | 1 |
| 2 | | 5TH GEAR PINION (23T) | 525-17151-00 | 1 |
| 3 |  | WASHER (17-21.5-1.0) | 90201-17545 | 2 |
| 4 |  | CIRCLIP (S-17) | 93410-17037 | 2 |
| 5 | | 3RD GEAR 4TH PINION (16T, 19T) | 525-17131-00 | 1 |
| 6 | | 6TH GEAR PINION (26T) | 525-17161-00 | 1 |
| 7 |  | 2ND GEAR PINION (13T) | 525-17121-00 | 1 |
| 8 | | BEARING (18x24x12mm) Drawn Cup Needle Bearing | 93318-21305 | 1 |
| 9 | | CIRCLIP (135 SPECIAL) | 93440-13042 | 1 |
| 10 |  | BEARING (6303) | 93306-30304 | 1 |
| 11 | | BEARING COVER PLATE | 1G8-17471-00 | 1 |
| 12 |  | PANHEAD SCREW | 92501-06012 | 2 |
| 13 | | DRIVE AXLE | 525-17421-00 | 1 |
| 14 | | 2ND GEAR WHEEL (32T) | 525-17221-00 | 1 |
| 15 |  | WASHER (132-17216-00) | 90201-20266 | 1 |
| 16 |  | CIRCLIP (S-20) | 93410-20038 | 4 |
| 17 | | 6TH GEAR WHEEL (20T) | 525-17261-00 | 1 |
| 18 | | 4TH GEAR WHEEL (27T) | 525-17241-01 | 1 |
| 19 | | 3RD GEAR WHEEL (30T) | 525-17231-01 | 1 |
| 20 | | WASHER (16.3-25-0.5) | 90209-16133 | 1 |
| 21 | | 5TH GEAR WHEEL (23T) | 525-17251-00 | 1 |
| 22 | | 1ST GEAR WHEEL (34T) | 525-17211-00 | 1 |
| 23 |  | DRIVE AXLE SHIM (15.2-30-0.6) | 164-17427-00-06 | 1 |
| 24 |  | CIRCLIP (15 SPECIAL) | 93440-15012 | 1 |
| 25 |  | BEARING (15x25x12mm) Needle Roller | 93311-31515 | 1 |
| 26 |  | BEARING (6204) | 93306-20418 | 1 |
| 27 |  | OIL SEAL (SD-26-38-5) | 93102-26042 | 1 |
| 28 |  | COLLAR (22-26-11.3) | 90387-20503 | 1 |
| 29 | | SPROCKET DRIVE GEAR (12T) | 174-17461-20 | |
| 29 |  | SPROCKET DRIVE GEAR (13T) | 174-17461-30 | 1 |
| 29 |  | SPROCKET DRIVE GEAR (14T) | 174-17461-40 | |
| 30 |  | LOCKING WASHER (102-17464-00) | 90215-16020 | 1 |
| 31 |  | NUT (102-17463-00) | 90179-16018 | 1 |
| 32 |  | KICK IDLE GEAR (25T) | 525-15651-00 | 1 |
| 33 |  | SHIM (15. 5-22-0. 5) | 137-17417-00-05 | 2 |
| 34 | | CIRCLIP (15 SPECIAL) | 93440-15012 | 2 |
