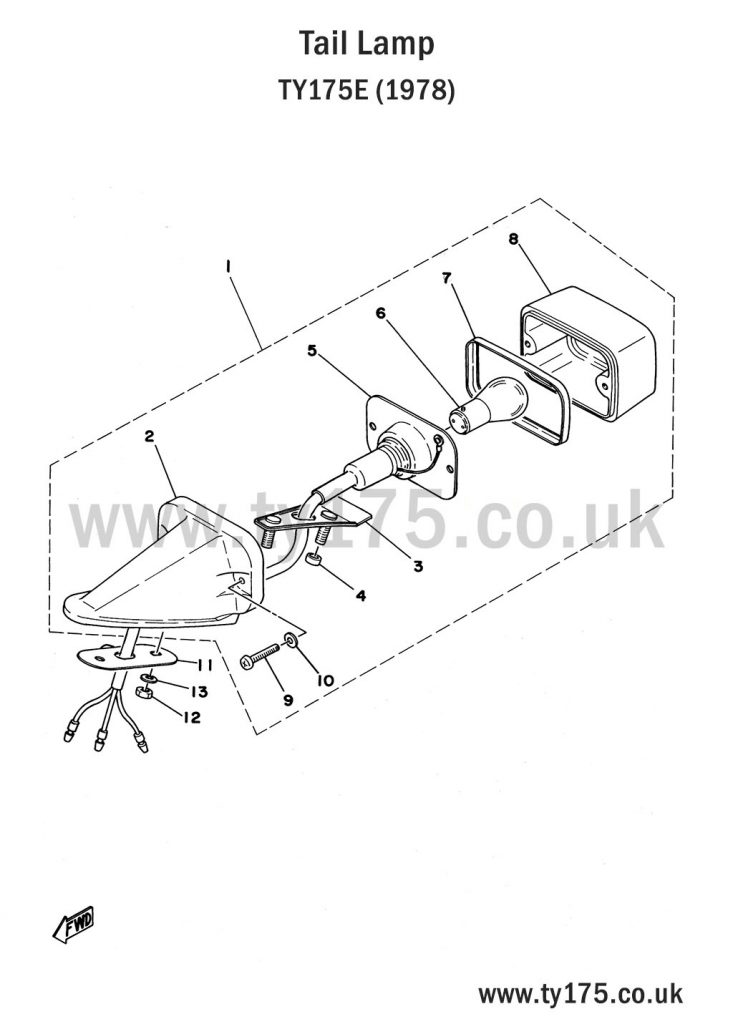

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | TAIL LAMP ASSEMLY | 434-84500-64 | 1 |
| 2 |  | COVER | 434-84519-64 | 1 |
| 3 | | TAIL LAMP BASE | 434-84511-63 | 1 |
| 4 | | COLLAR | 434-84557-60 | 2 |
| 5 | | SOCKET ASSEMBLY | 434-84517-61 | 1 |
| 6 |  | BULB, TAIL LAMP (6V-17/5.3W) | 122-84514-30 | 1 |
| 7 |  | TAIL LAMP RIM | 434-84515-61 | 1 |
| 8 |  | TAIL LAMP LENS | 434-84521-69 | 1 |
| 9 | | SCREW | 434-84524-62 | 2 |
| 10 | | WASHER (SPECIAL) | 434-84522-62 | 2 |
| 11 | | RUBBER WASHER/SEAL (SPECIAL) | 434-84525-01 | 1 |
| 12 |  | NUT | 95301-05600 | 2 |
| 13 |  | SPRING WASHER | 92901-05100 | 2 |
