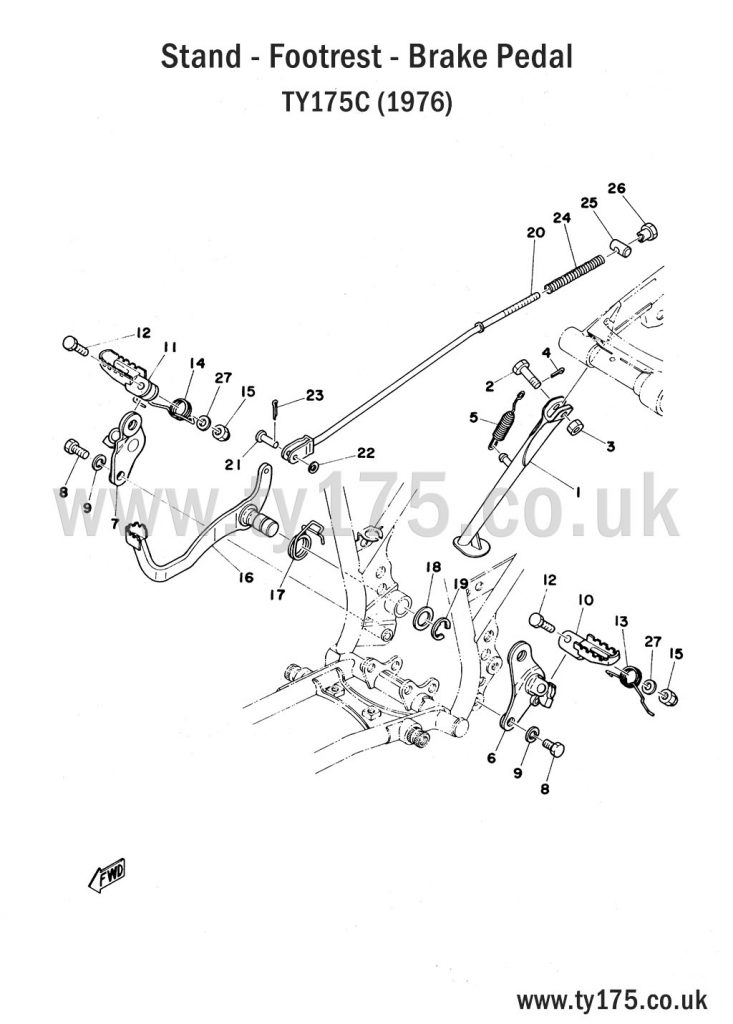

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | SIDE STAND | 493-27311-00 | 1 |
| 2 |  | BOLT (278-27317-00) | 90102-10006 | 1 |
| 3 | | CASTLE NUT | 90171-10012 | 1 |
| 4 |  | SPLIT PIN | 91401-20025 | 1 |
| 5 |  | SPRING | 90507-29008 | 1 |
| 6 | | FOOTREST HANGER BRACKET (L/H) | 525-27412-00 | 1 |
| 7 | | FOOTREST HANGER BRACKET (R/H) | 525-27422-00 | 1 |
| 8 |  | BOLT, HEXAGON | 97321-08015 | 2 |
| 9 |  | WASHER, SPRING | 92901-08100 | 2 |
| 10 |  | FOOTREST (L/H) | 434-27411-00 | 1 |
| 11 |  | FOOTREST (R/H) | 434-27421-00 | 1 |
| 12 | | BOLT | 90101-08250 | 2 |
| 13 |  | TORSION SPRING | 90508-26266 | 1 |
| 14 |  | TORSION SPRING | 90508-26267 | 1 |
| 15 |  | LOCKING NUT | 95601-08100 | 2 |
| 16 | | REAR BRAKE PEDAL | 525-27211-00-91 | 1 |
| 17 | | RETURN SPRING | 90508-35264 | 1 |
| 18 |  | WASHER (256-15615-00) | 90201-17256 | 1 |
| 19 |  | CIRCLIP (E-12) | 93430-12022 | 1 |
| 20 |  | BRAKE ROD | 276-27231-00 | 1 |
| 21 |  | CLEVIS PIN (248-27228-00) | 90240-06006 | 1 |
| 22 |  | WASHER | 92901-06200 | 1 |
| 23 | | SPLIT PIN | 91401-25012 | 1 |
| 24 |  | SPRING (180-27236-00) | 90501-10245 | 1 |
| 25 |  | PIN (156-27237-00) | 90249-12008 | 1 |
| 26 |  | NUT | 90179-06176 | 1 |
| 27 |  | WASHER (9.2-17-1.0) | 90201-08572 | 2 |
