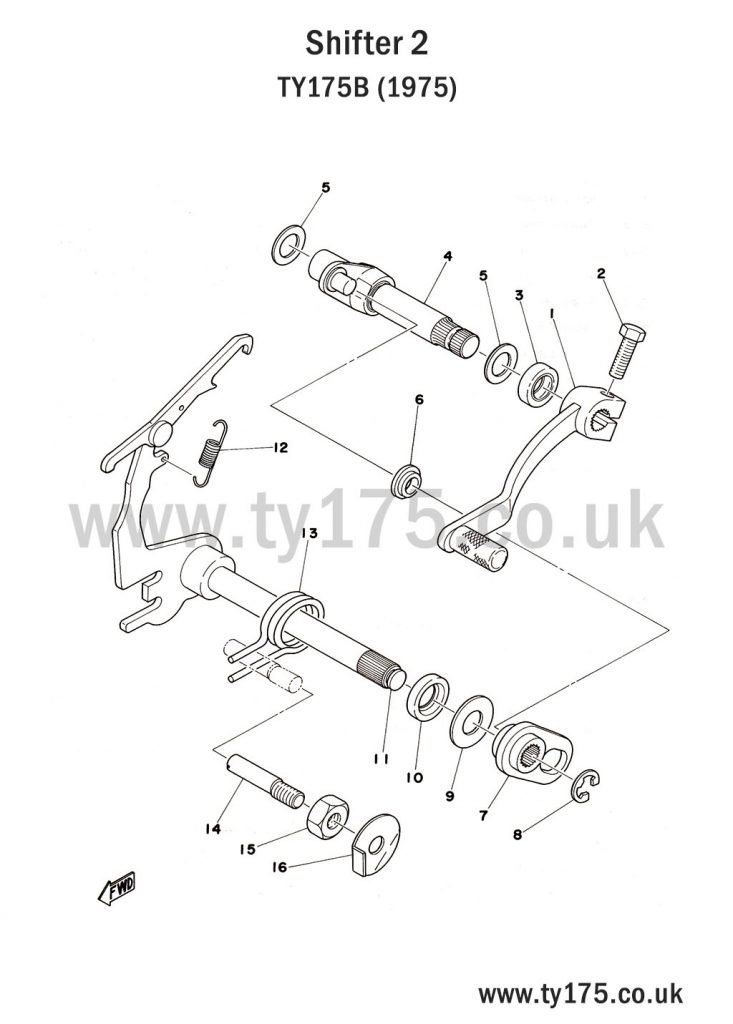

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | GEAR SHIFT LEVER | 525-18111-00-93 | 1 |
| 2 |  | BOLT | 99901-06020 | 1 |
| 3 |  | OIL SEAL (SDO-12-19-5) | 93109-12012 | 1 |
| 4 | | SHIFT SHAFT ASSEMBLY 2 | 401-18102-00 | 1 |
| 5 |  | SHIM (12-20-0.8) | 401-18334-00 | 2 |
| 6 |  | CHANGE LEVER ROLLER | 401-18178-00 | 1 |
| 7 |  | CHANGE LEVER 4 | 401-18152-01 | 1 |
| 8 |  | CIRCLIP (E-8) | 93430-08006 | 1 |
| 9 |  | WASHER (132-18137-00) | 90201-12183 | 1 |
| 10 |  | OIL SEAL (S-12-21-4) | 93101-12060 | 1 |
| 11 |  | CHANGE SHAFT ASS'EMBLY | 525-18101-00 | 1 |
| 12 |  | TENSION SPRING (132-18123-00) | 90506-09009 | 1 |
| 13 | | TORSION SPRING | 90508-25273 | 1 |
| 14 |  | SCREW (SPECIAL) | 90149-08096 | 1 |
| 15 |  | NUT | 90170-08029 | 1 |
| 16 |  | LOCKING WASHER | 90215-08014 | 1 |
