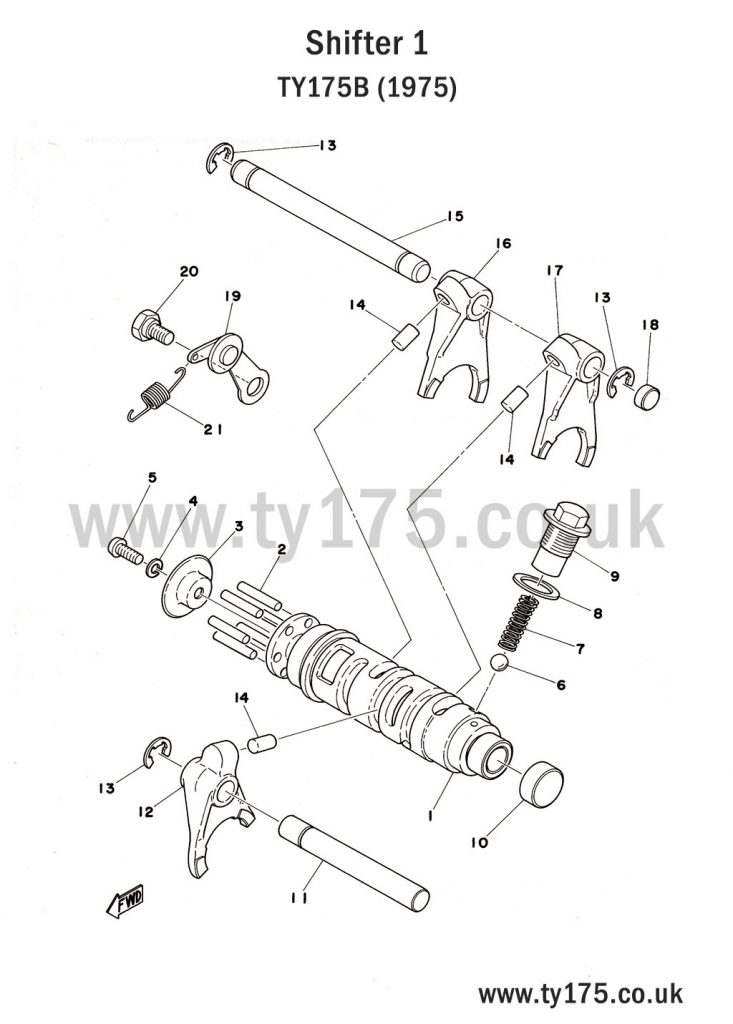

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | SHIFT CAM | 525-18541-00 | 1 |
| 2 |  | DOWEL PIN (4-21.8) | 93604-22050 | 6 |
| 3 | | SIDE PLATE | 525-18561-00 | 1 |
| 4 |  | SPRING WASHER | 92901-05100 | 1 |
| 5 |  | PANHEAD SCREW | 98501-05012 | 1 |
| 6 |  | BALL (5/16 INCH) | 93505-16006 | 1 |
| 7 |  | COMPRESSION SPRING (174-18558-00) | 90501-12083 | 1 |
| 8 |  | DRAIN PLUG GASKET (14.5x21x1.5mm) | 137-15353-00 | 1 |
| 9 |  | BOLT (SPECIAL) | 90109-14385 | 1 |
| 10 |  | PLUG (363-17481-00) | 90338-20023 | 1 |
| 11 | | SHIFT FORK GUIDE BAR | 257-18531-00 | 1 |
| 12 |  | SHIFT FORK 2 | 525-18512-00 | 1 |
| 13 |  | CIRCLIP (E-8) | 93430-08006 | 3 |
| 14 |  | STRAIGHT PIN (257-18552-00) | 90250-06013 | 3 |
| 15 |  | SHIFT FORK GUIDE BAR 2 | 363-18535-00 | 1 |
| 16 |  | SHIFT FORK 3 | 525-18513-00 | 1 |
| 17 | | SHIFT FORK 1 | 525-18511-00 | 1 |
| 18 |  | PLUG | 90338-10063 | 1 |
| 19 | | STOPPER LEVER ASSEMBLY | 525-18140-00 | 1 |
| 20 |  | BOLT (132-18177-00) | 90109-06001 | 1 |
| 21 |  | TENSION SPRING | 90506-09112 | 1 |
