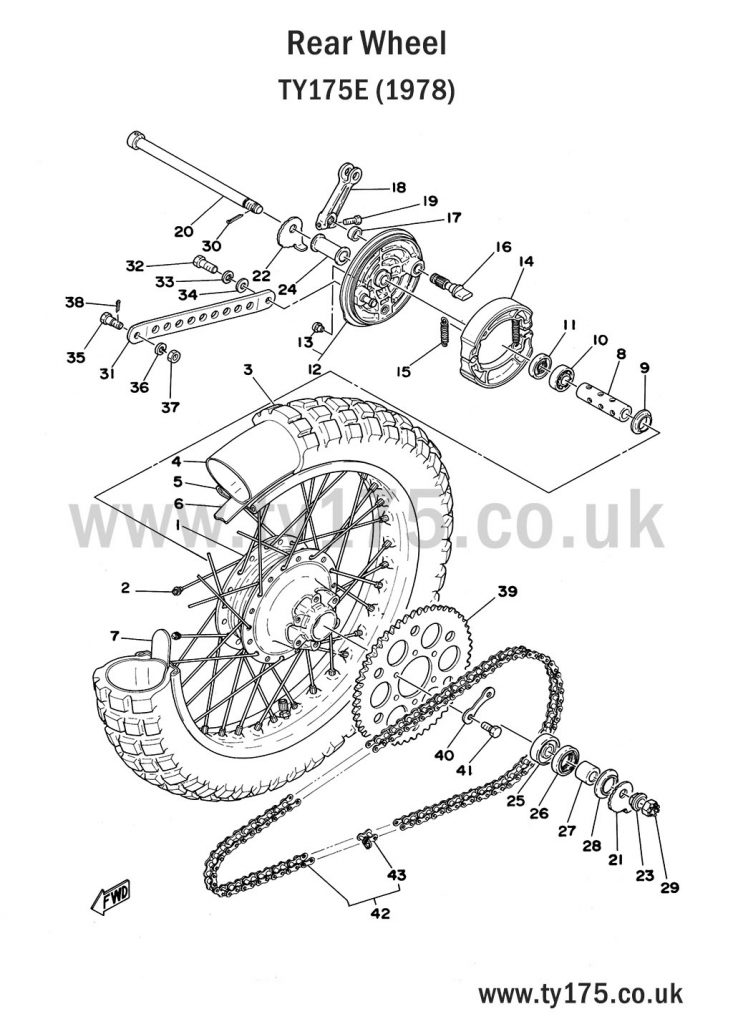

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | REAR WHEEL HUB | 434-25311-01 | 1 |
| 2 |  | SPOKE SET | 434-25304-00 | 1s |
| 3 | | REAR TYRE (4.00-18-4PR) | 94140-18326 | 1 |
| 4 | | REAR INNER TUBE (4.00-18) | 94240-18024 | 1 |
| 5 |  | REAR RIM (1.85-18) | 94418-18154 | 1 |
| 6 | | RIM TAPE (4.00-18) | 94340-18022 | 1 |
| 7 |  | RIM LOCK | 214-25394-00 | 2 |
| 8 | | BEARING SPACER | 434-25317-01 | 1 |
| 9 |  | SPACER FLANGE | 148-25115-00 | 2 |
| 10 |  | BEARING (6202Z) | 93306-20204 | 1 |
| 11 |  | OIL SEAL (0-22-35-5) | 93104-22018 | 1 |
| 12 |  | BRAKE SHOE PLATE | 1N4-25320-00-35 | 1 |
| 13 | | GROMMET | 90480-10068 | 1 |
| 14 |  | BRAKE SHOES | 437-25330-00 | 2 |
| 15 |  | TENSION SPRING (183-25333-00) | 90506-16036 | 1 |
| 16 |  | CAMSHAFT | 248-25351-00 | 2 |
| 17 |  | CAMSHAFT SEAL | 148-25359-00 | 1 |
| 18 |  | CAMSHAFT LEVER | 434-25355-10 | 1 |
| 19 |  | BOLT | 90101-06291 | 1 |
| 20 | | REAR WHEEL SPINDLE | 525-25381-00 | 1 |
| 21 | | SNAIL CAM (L/H) | 525-25388-00 | 1 |
| 22 | | SNAIL CAM (R/H) | 525-25389-00 | 1 |
| 23 |  | WASHER | 90201-15238 | 1 |
| 24 | | REAR WHEEL SPACER | 90387-15490 | 1 |
| 25 |  | BEARING (6302Z) | 93306-30203 | 1 |
| 26 |  | OIL SEAL (DD-26-42-8) | 93106-26005 | 1 |
| 27 | | COLLAR (15-26-19) | 90387-15489 | 1 |
| 28 |  | DUST COVER | 401-25367-00 | 1 |
| 29 |  | CASTLE NUT | 90171-14020 | 1 |
| 30 |  | SPLIT PIN | 91401-30030 | 1 |
| 31 | | REAR WHEEL TORQUE ARM | 434-25371-01 | 1 |
| 32 | | HUB/TORQUE ARM SHOULDER BOLT (M10 - 1.25 PITCH) | 90101-10254 | 1 |
| 33 |  | SPRING WASHER (M10) | 92901-10100 | 1 |
| 34 |  | WASHER (M10) | 92901-10600 | 1 |
| 35 |  | TORQUE ARM SHOULDER BOLT (M8 - 1.25 PITCH) (109-25373-00) | 90109-08063 | 1 |
| 36 |  | SPRING WASHER (M8) | 92901-08100 | 1 |
| 37 |  | NUT (M8 - 1.25 PITCH) | 95301-08700 | 1 |
| 38 | | SPLIT PIN | 91401-25020 | 1 |
| 39 | | REAR SPROCKET (51T) | 525-25451-00 | 1 |
| 40 |  | SPROCKET TAB WASHER | 214-25412-00 | 3 |
| 41 |  | BOLT (M8 x 20mm) | 90109-08377 | 6 |
| 42 |  | CHAIN (428 PITCH X 112 LINKS) | 94524-28112 | 1 |
| 43 | | MASTER CHAIN LINK | 94624-28001 | 1 |
