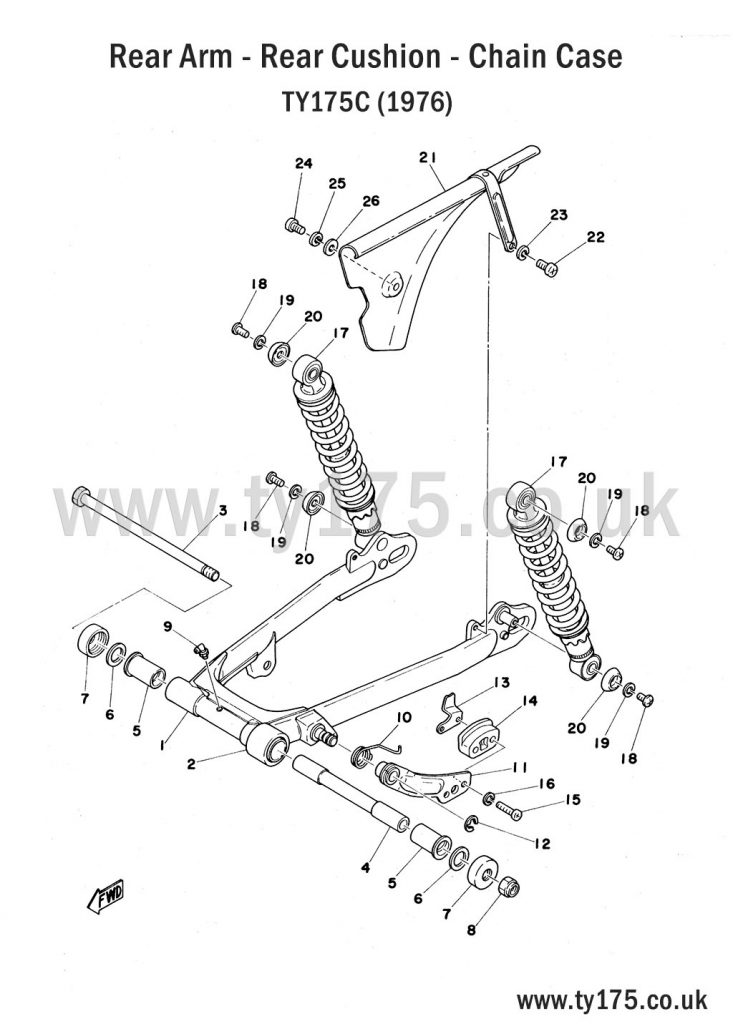

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | REAR SWINGING ARM | 525-22110-00-35 | 1 |
| 2 |  | GUARD SEAL | 437-22151-00 | 1 |
| 3 |  | MAIN SWINGING ARM BOLT | 525-22141-00 | 1 |
| 4 |  | BUSH (401-22124-00) | 90389-12002 | 1 |
| 5 |  | BUSH (401-22123-00) | 90386-18028 | 2 |
| 6 |  | SHIM (19-28-0.3) | 401-22127-00 | U. N |
| 7 |  | DUST CAP | 401-22128-01 | 2 |
| 8 |  | LOCK NUT | 90185-12046 | 1 |
| 9 |  | GREASE NIPPLE | 93700-06005 | 1 |
| 10 |  | TENSIONER SPRING | 90508-32140 | 1 |
| 11 |  | CHAIN TENSIONER | 434-22179-00-93 | 1 |
| 12 |  | CIRCLIP (E-10) | 93430-10015 | 1 |
| 13 |  | CHAIN WEAR PAD GUARD | 434-22153-00-91 | 1 |
| 14 |  | CHAIN WEAR PAD | 493-22178-00 | 1 |
| 15 | | PANHEAD SCREW | 98501-05025 | 2 |
| 16 |  | SPRING WASHER | 92901-05100 | 2 |
| 17 | | REAR SHOCK ABSORBER(S) | 525-22210-00 | 2 |
| 18 |  | SCREW | 98901-06012 | 4 |
| 19 |  | SPRING WASHER | 92901-06100 | 4 |
| 20 |  | WASHER | 90207-06009 | 4 |
| 21 | | CHAIN GUARD | 525-22311-01-35 | 1 |
| 22 |  | PANHEAD SCREW | 98501-05010 | 1 |
| 23 | | SPRING WASHER | 92901-05100 | 1 |
| 24 |  | PANHEAD SCREW | 98501-05008 | 1 |
| 25 | | SPRING WASHER | 92901-05100 | 1 |
| 26 |  | WASHER (6.5-20-1.6) | 90201-06067 | 1 |
