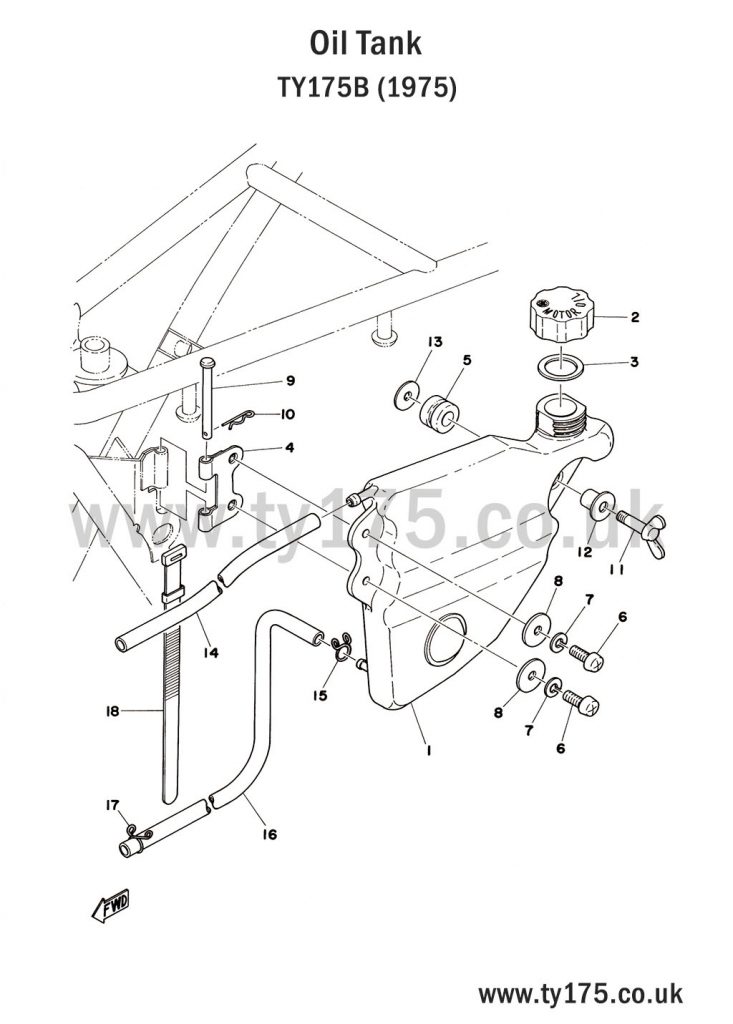

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | OIL TANK | 525-21751-00 | 1 |
| 2 |  | CAP | 434-21771-00 | 1 |
| 3 |  | GASKET | 90430-18067 | 1 |
| 4 | | HINGE | 525-21797-00 | 1 |
| 5 |  | GROMMET (214-21717-00) | 90480-14102 | 1 |
| 6 |  | PANHEAD SCREW | 92501-06015 | 2 |
| 7 |  | SPRING WASHER | 92901-06100 | 2 |
| 8 |  | WASHER (6.5-22-1.6) | 90201-06339 | 2 |
| 9 |  | CLEVIS PIN | 91501-05055 | 1 |
| 10 |  | R CLIP (156-83525-00) | 90468-10050 | 1 |
| 11 |  | WING NUT BOLT | 90122-06001 | 1 |
| 12 |  | COLLAR (322-21544-00) | 90387-06388 | 1 |
| 13 |  | LATCH CLAMP NUT | 90179-06013 | 1 |
| 14 |  | HOSE (170-21766-00) | 90445-09117 | 1 |
| 15 |  | PIPE CLIP (143-24356-00) | 90467-10008 | 2 |
| 16 |  | HOSE (296-24311-00) | 90445-09113 | 1 |
| 17 |  | PIPE CLIP (101-23560-00) | 90467-08003 | 1 |
| 18 |  | CABLE TIE | 256-83936-00 | 1 |
