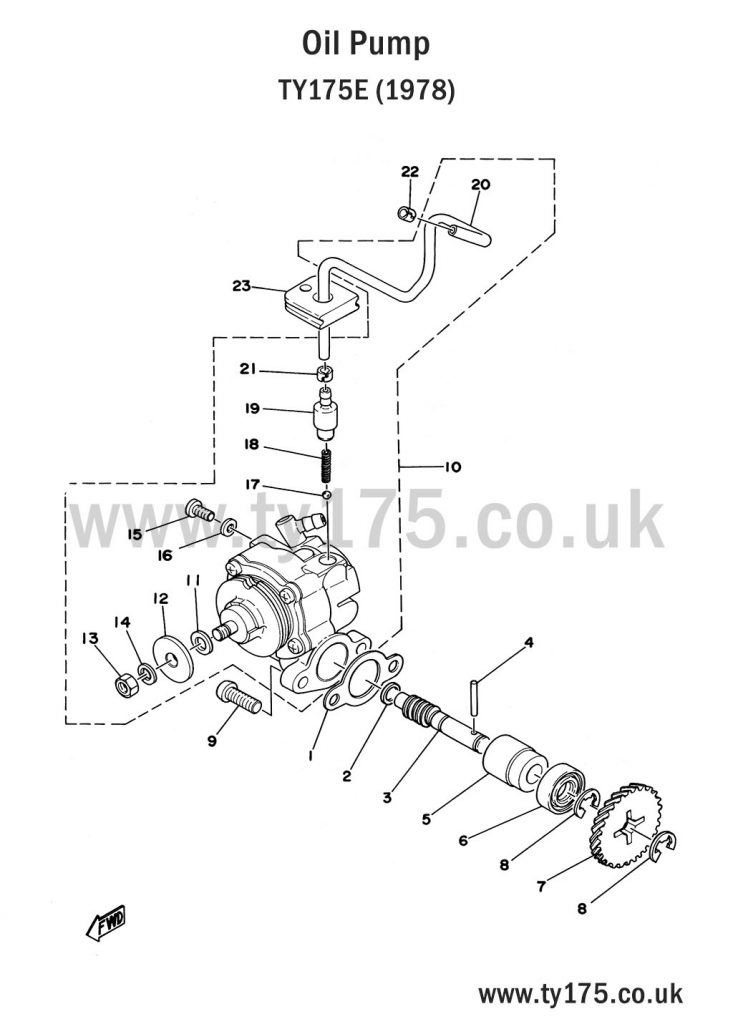

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | PUMP CASE GASKET | 126-13116-00 | 1 |
| 2 |  | WASHER (8.2-11-1.0) | 90201-08624 | 1 |
| 3 | | WORM SHAFT | 525-13175-01 | 1 |
| 4 |  | DOWEL PIN (3-22) | 93603-22028 | 1 |
| 5 |  | WORM SHAFT OUTER | 1E7-13176-00 | 1 |
| 6 |  | OIL SEAL (S-10-22-7) | 93101-10002 | 1 |
| 7 |  | DRIVE GEAR (28T) | 353-13178-00 | 1 |
| 8 |  | CIRCLIP (E-8) | 93430-08006 | 2 |
| 9 | | PANHEAD SCREW | 98501-05016 | 2 |
| 10 |  | OIL PUMP ASSEMBLY | 525-13101-01 | 1 |
| 11 |  | PLUNGER SHIM (5.8-10-0.3) | 137-13137-00-03 | |
| 11 |  | PLUNGER SHIM (5.8-10-0.5) | 137-13137-00-05 | 1 |
| 11 |  | PLUNGER SHIM (5.8-10-1.0) | 137-13137-00-10 | |
| 12 |  | ADJUSTING PLATE | 137-13138-01 | 1 |
| 13 |  | NUT | 95301-05600 | 1 |
| 14 |  | SPRING WASHER | 92901-05100 | 1 |
| 18 |  | SCREW, BIND | 98901-04008 | 1 |
| 19 |  | GASKET (137-13187-00) | 90430-04004 | 1 |
| 20 |  | BALL (5/32 INCH) | 93505-32002 | 1 |
| 21 |  | CHECK BALL SPRING (278-13169-00) | 278-13169-00 | 1 |
| 22 |  | NOZZLE | 402-13552-00 | 1 |
| 23 | | HOSE (3-200) | 90445-05278 | 1 |
| 24 | | CLIP (214-13164-00) | 90468-02033 | 1 |
| 25 | | CLIP (214-13164-00) | 90468-02033 | 1 |
| 26 |  | OIL PIPE HOLDER | 525-13174-00 | 1 |
