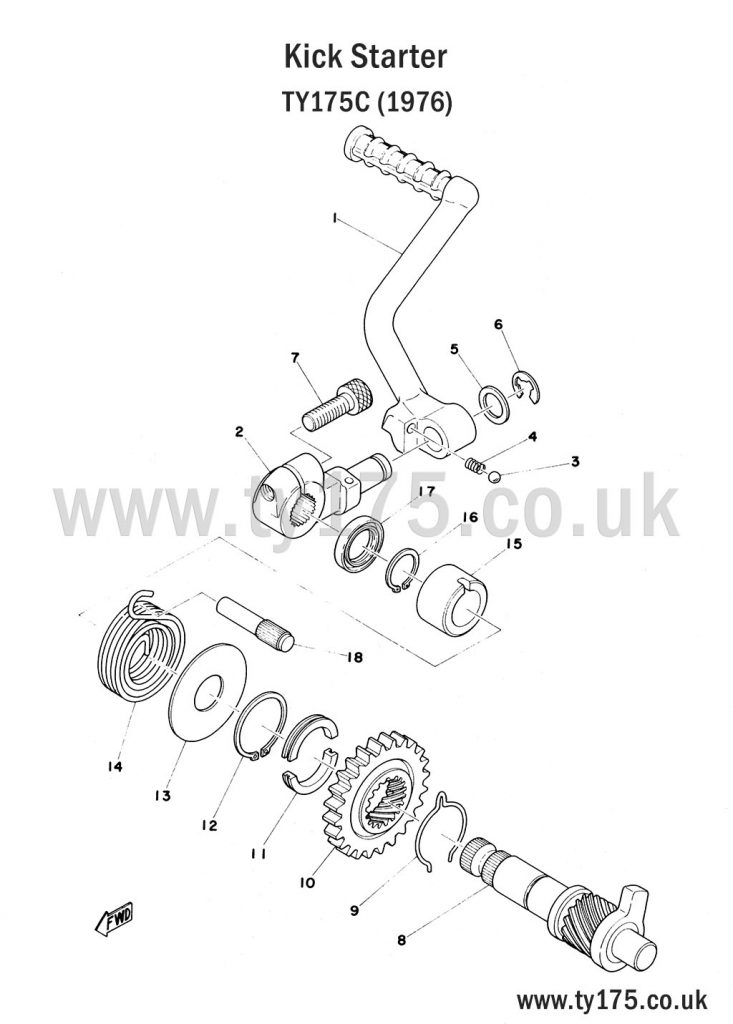

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | KICK START LEVER | 525-15611-00-93 | 1 |
| 2 |  | KICK START LEVER BOSS | 525-15621-00-91 | 1 |
| 3 |  | BALL (7/32 INCH) | 93507-32009 | 1 |
| 4 |  | COMPRESSION SPRING (278-1.5622-00) | 90501-12081 | 1 |
| 5 |  | WASHER (12.5-18-1.5) | 90201-12541 | 1 |
| 6 |  | CIRCLIP (E-8) | 93430-08007 | 1 |
| 7 |  | BOLT | 91316-08025 | 1 |
| 8 |  | KICK AXLE ASSEMBLY | 525-15660-00 | 1 |
| 9 |  | CLIP | 90468-26048 | 1 |
| 10 |  | KICK GEAR (27T) | 315-15641-00 | 1 |
| 11 |  | KICK GEAR HOLDER | 248-15654-00 | 2 |
| 12 |  | CIRCLIP (S-30) | 93410-30012 | 1 |
| 13 |  | SPRING COVER | 401-15676-00 | 1 |
| 14 |  | TORSION SPRING (401-15665-00) | 90508-26041 | 1 |
| 15 |  | SPACER | 401-15666-00 | 1 |
| 16 |  | CIRCLIP (S-17) | 93410-17008 | 1 |
| 17 |  | OIL SEAL (17x25x4mm) | 93101-17062 | 1 |
| 18 |  | KICK SPRING STOPPER | 257-15668-00 | 1 |
