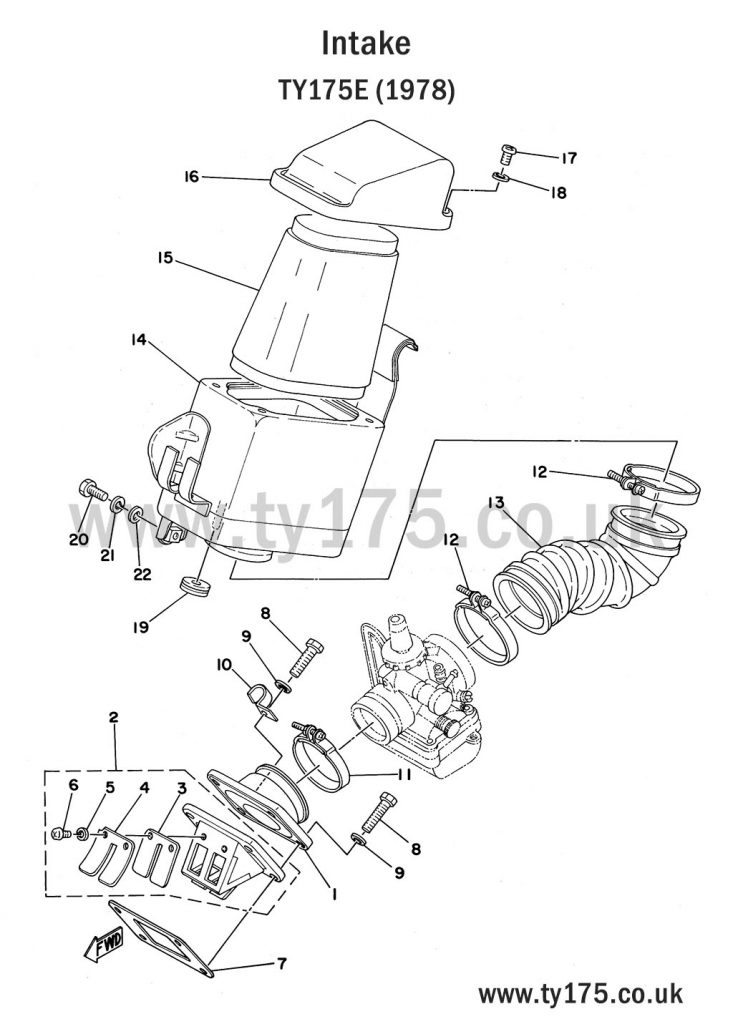

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | CARBURETOR JOINT | 525-13565-01 | 1 |
| 2 |  | REED VALVE ASSEMBLY | 314-13610-01 | 1 |
| 3 |  | REED VALVE | 314-13613-00 | 2 |
| 4 |  | REED VALVE STOPPER | 314-13616-01 | 2 |
| 5 |  | SPRING WASHER | 92901-03100 | 4 |
| 6 |  | PANHEAD SCREW | 98512-03008 | 4 |
| 7 |  | VALVE SEAT SPACER | 314-13621-02 | 1 |
| 8 |  | BOLT | 97301-06025 | 4 |
| 9 |  | SPRING WASHER | 92901-06600 | 4 |
| 10 |  | CLAMP (363-15485-01) | 90462-05005 | 1 |
| 11 |  | HOSE CLAMP (304- 14455-70) | 90460-43053 | 1 |
| 12 |  | HOSE CLAMP (278-14455-00) | 90460-49058 | 2 |
| 13 | | AIR BOX TO CARB JOINT | 525-14453-00 | 1 |
| 14 | | AIR BOX | 525-14411-00 | 1 |
| 15 |  | AIR FILTER ELEMENT | 525-14451-01 | 1 |
| 16 | | AIR BOX LID | 525-14412-01 | 1 |
| 17 |  | PANHEAD SCREW | 98501-04008 | 4 |
| 18 |  | WASHER | 92901-04600 | 4 |
| 19 |  | DAMPER (214-21746-00) | 90480-10091 | 1 |
| 20 |  | BOLT | 97301-06016 | 1 |
| 21 | | SPRING WASHER | 92901-06100 | 1 |
| 22 |  | WASHER (6.5-20-1.6) | 90201-06067 | 1 |
 | AIR FILTER CAGE | AIRFILTERCAGE | 1 |
