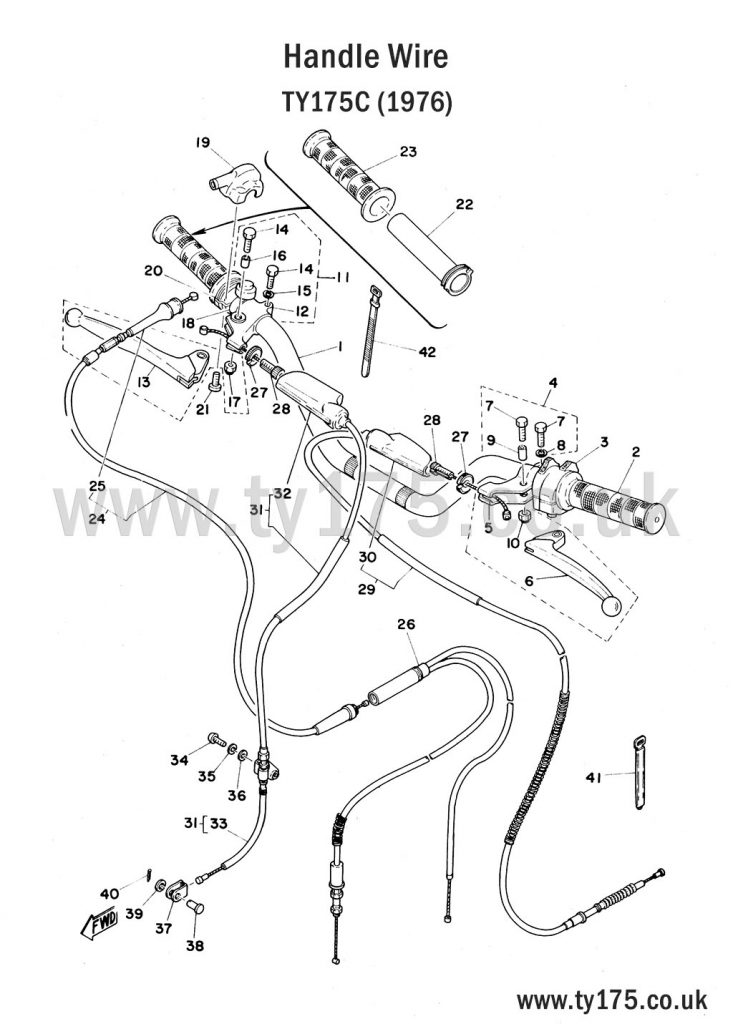

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | HANDLEBARS | 525-26111-01 | 1 |
| 2 |  | GRIP (L/H) | 493-26241-00 | 1 |
| 3 |  | HANDLEBAR SWITCH 2 | 434-83975-00 | 1 |
| 4 | | CLUTCH LEVER HOLDER ASSEMLEY | 214-82910-03 | 1 |
| 5 |  | CLUTCH LEVER HOLDER (L/H) | 214-82911-01 | 1 |
| 6 |  | CLUTCH LEVER (L/H) | 214-83912-01 | 1 |
| 7 |  | BOLT | 97303-06020 | 2 |
| 8 |  | SPRING WASHER | 92901-06100 | 1 |
| 9 |  | LEVER COLLAR | 214-83913-00 | 1 |
| 10 |  | LOCK NUT | 95601-06100 | 1 |
| 11 | | FRONT BRAKE LEVER HOLDER ASSEMLEY | 233-82920-33 | 1 |
| 12 |  | BRAKE LEVER HOLDER (R/H) | 233-82921-31 | 1 |
| 13 |  | FRONT BRAKE LEVER | 233-83922-01 | 1 |
| 14 |  | BOLT | 97303-06025 | 2 |
| 15 | | SPRING WASHER | 92901-06100 | 1 |
| 16 | | LEVER COLLAR | 214-83913-00 | 1 |
| 17 | | LOCK NUT | 95601-06100 | 1 |
| 18 | | HANDLEBAR SWITCH 1 | 483-83976-00 | 1 |
| 19 | | THROTTLE CAP UPPER | 493-26281-00 | 1 |
| 20 |  | THROTTLE CAP LOWER | 493-26282-00 | 1 |
| 21 |  | PANHEAD SCREW | 98503-05020 | 2 |
| 22 |  | THROTTLE TUBE | 434-26243-10 | 1 |
| 23 |  | GRIP (R/H) | 493-26242-00 | 1 |
| 24 |  | THROTTLE CABLE (840 MM) | 525-26311-00 | 1 |
| 25 | | THROTTLE CABLE BOOT COVER | 322-26316-00 | 1 |
| 26 | | THROTTLE CABLE 2 | 525-26312-00 | 1 |
| 27 |  | NUT (168-26344-00) | 90179-08148 | 2 |
| 28 |  | BRAKE CABLE ADJUSTER | 90123-08046 | 2 |
| 29 | | CLUTCH CABLE (970 MM) | 525-26335-00 | 1 |
| 30 |  | CLUTCH LEVER COVER | 382-26372-01 | 1 |
| 31 | | FRONT BRAKE CABLE | 434-26341-04 | 1 |
| 32 | | BRAKE LEVER COVER | 382-26372-01 | 1 |
| 33 | | WIRE BOOT | 434-26342-01 | 1 |
| 34 |  | PANHEAD SCREW | 92501-06015 | 1 |
| 35 | | SPRING WASHER | 92901-06100 | 1 |
| 36 |  | WASHER | 92901-06200 | 1 |
| 37 |  | ARM CLEVIS JOINT | 156-26347-00 | 1 |
| 38 |  | CLEVIS PIN (156-27229-00) | 90240-08012 | 1 |
| 39 |  | WASHER (156-27226-00) | 90201-08083 | 1 |
| 40 | | SPLIT PIN | 91401-20012 | 1 |
| 41 |  | CABLE TIE | 525-83937-00 | 2 |
| 42 |  | CABLE TIE | 168-83936-01 | 2 |
