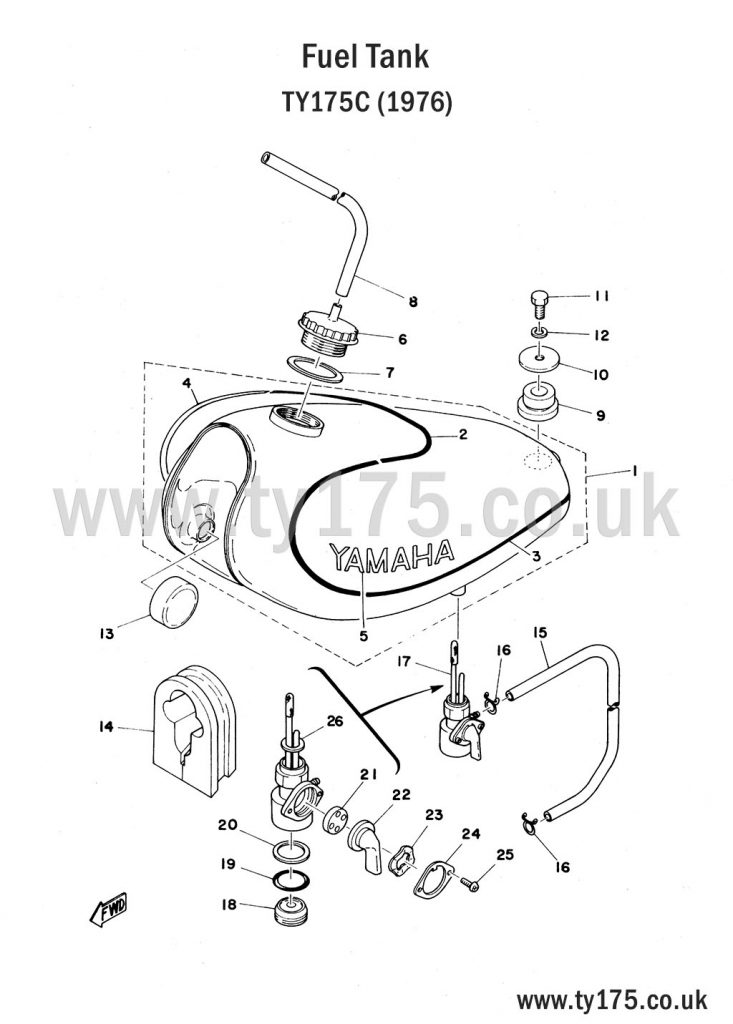

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | FUEL TANK | 525-24110-00-03 | 1 |
| 2 | | DECAL STRIPE FUEL TANK CENTRE | 525-24244-01 | 1 |
| 3 | | DECAL STRIPE FUEL TANK LOWER LEFT | 525-24246-00 | 1 |
| 4 | | DECAL STRIPE FUEL TANK LOWER RIGHT | 525-24247-00 | 1 |
| 5 |  | DECAL YAMAHA FUEL TANK | 554-24161-00 | 2 |
| 6 |  | FUEL CAP | 322-24611-01 | 1 |
| 7 |  | FUEL CAP GASKET | 90430-35122 | 1 |
| 8 | | BREATHER PIPE | 90445-09238 | 1 |
| 9 |  | RUBBER DAMPER (322-24182-00) | 90480-25135 | 1 |
| 10 |  | WASHER (341-83348-00) | 90209-08098 | 1 |
| 11 | | BOLT | 97301-08015 | 1 |
| 12 |  | SPRING WASHER | 92901-08100 | 1 |
| 13 |  | FUEL TANK RUBBER DAMPER(S) | 278-24181-00 | 2 |
| 14 |  | UNDER FUEL TANK RUBBER DAMPER | 434-24183-00 | 1 |
| 15 | | FUEL LINE PIPE (307-24312-00 5- 125 5- 125) | 90445-09073 | 1 |
| 16 |  | FUEL LINE HOSE CLIP (810-24356-00) | 90467-09005 | 2 |
| 17 |  | FUEL TAP ASSEMBLY | 434-24500-01 | 1 |
| 18 | | FUEL FILTER CUP | 434-24521-00 | 1 |
| 19 |  | O-RING | 132-24522-00 | 1 |
| 20 |  | FILTER GASKET | 434-24576-00 | 1 |
| 21 |  | RUBBER VALVE/GASKET | 137-24523-00 | 1 |
| 22 |  | FUEL TAP LEVER | 168-24524-00 | 1 |
| 23 |  | WAVE WASHER | 132-24518-00 | 1 |
| 24 | | FUEL TAP COVER PLATE | 132-24525-01 | 1 |
| 25 |  | PANHEAD SCREW | 193-81145-20 | 2 |
