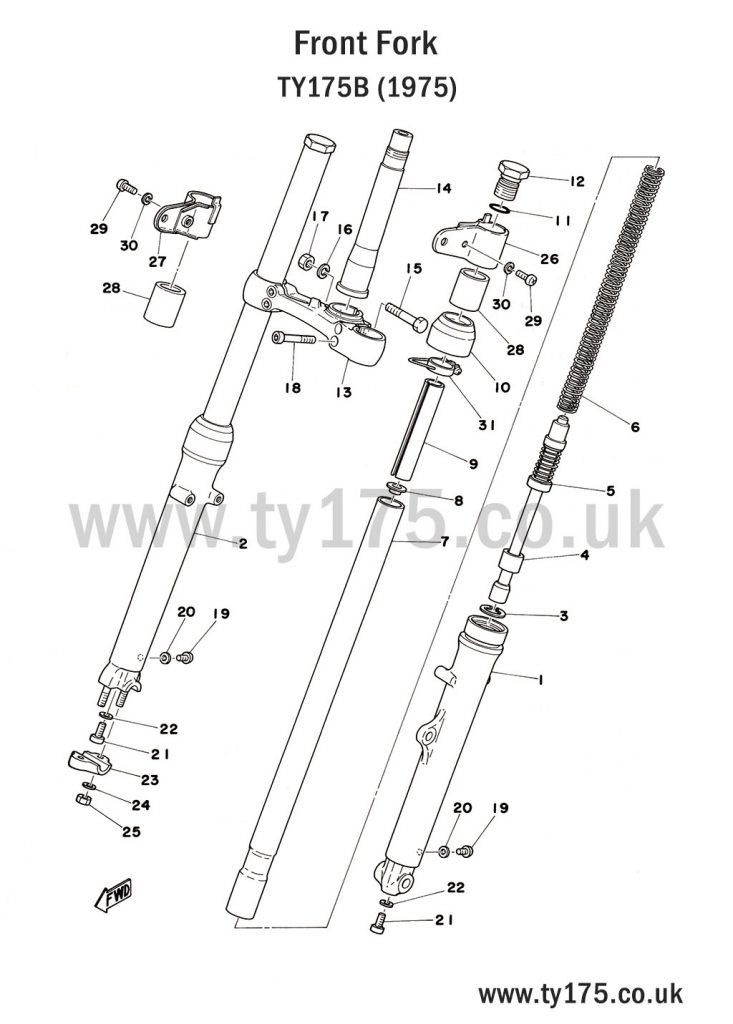

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 0 |  | FRONT FORK ASSEMBLY | 525-23101-01 | 1 |
| 1 | | OUTER TUBE (L/H) | 525-23126-00 | 1 |
| 2 | | OUTER TUBE (R/H) | 525-23136-00 | 1 |
| 3 |  | SNAP RING | 535-23156-00 | 2 |
| 4 | | FRONT FORK PISTON(S) | 535-23171-00 | 2 |
| 5 | | FRONT FORK CYLINDER(S) | 525-23170-00 | 2 |
| 6 |  | FRONT FORK SPRING(S) | 525-23141-00 | 2 |
| 7 | | INNER TUBE | 525-23124-00 | 2 |
| 8 | | SPRING GUIDE | 437-23117-01 | 2 |
| 9 | | SPACER | 315-23118-00 | 2 |
| 10 | | DUST SEAL | 535-23144-00 | 2 |
| 11 |  | SPACER (O-RING) | 146-23114-00 | 2 |
| 12 |  | FORK CAPS | 248-23111-01 | 2 |
| 13 | | UNDER BRACKET COMP. | 525-23345-00 | 1 |
| 14 | | STEERING SHAFT STEM | 434-23341-00 | 1 |
| 15 | | BOLT | 322-23356-00 | 1 |
| 16 |  | SPRING WASHER | 92901-10100 | 1 |
| 17 | | NUT | 322-23357-00 | 1 |
| 18 | | BOTTOM YOKE BOLT(S) | 322-23346-00 | 4 |
| 19 |  | DRAIN PLUG | 122-23119-01 | 2 |
| 20 |  | DRAIN PLUG GASKET | 122-23129-00 | 2 |
| 21 |  | BOLT | 91311-08020 | 2 |
| 22 | | SPACER | 214-23158-00 | 2 |
| 23 |  | HOLDER | 315-23167-50 | 1 |
| 24 |  | SPRING WASHER | 92901-08544 | 2 |
| 25 | | NUT | 90170-08176 | 2 |
| 26 |  | HEADLIGHT BRACKET (L/H) | 525-23121-00-93 | 1 |
| 27 |  | HEADLIGHT BRACKET (R/H) | 525-23131-00-93 | 1 |
| 28 |  | SPACER | 525-23163-00 | 2 |
| 29 | | PANHEAD SCREW | 92503-06018 | 2 |
| 30 | | SPRING WASHER | 92903-06100 | 2 |
| 31 | | CABLE HOLDER/GUIDE | 525-23318-01 | 1 |
