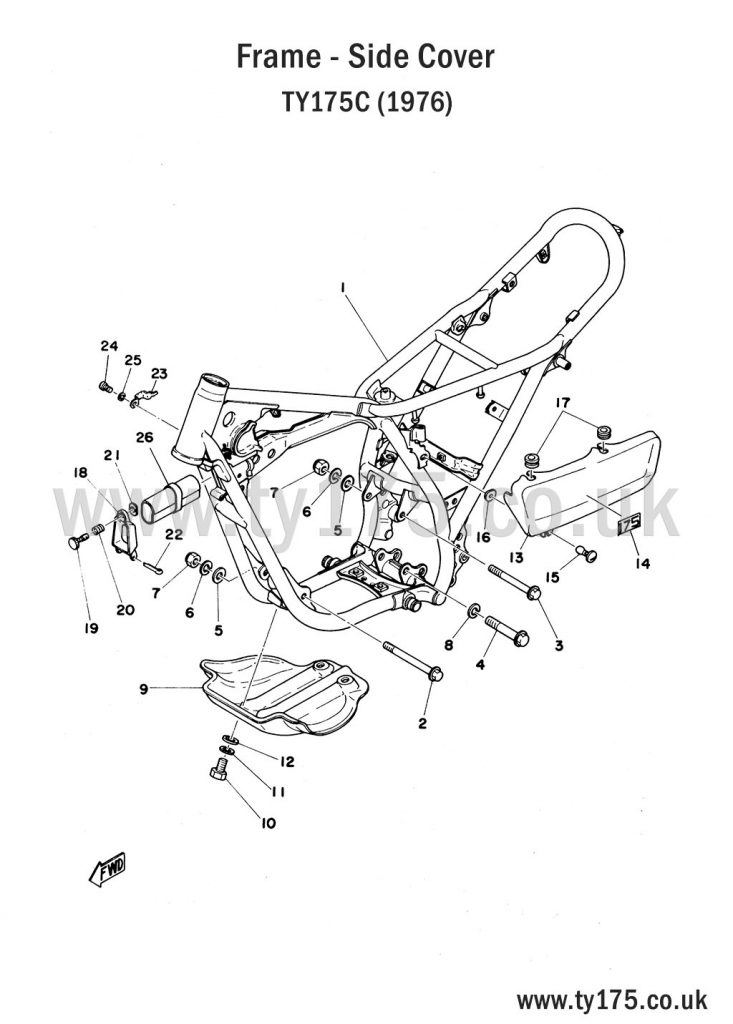

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | FRAME | 525-21110-00-35 | 1 |
| 2 |  | ENGINE MOUNTING BOLT 1 | 90105-08024 | 1 |
| 3 |  | BOLT | 90105-08022 | 1 |
| 4 |  | BOLT | 90105-10037 | 1 |
| 5 |  | WASHER | 90209-08050 | 2 |
| 6 |  | SPRING WASHER | 92901-08100 | 2 |
| 7 |  | LOCKING NUT | 90185-08054 | 2 |
| 8 |  | SPRING WASHER | 92901-10100 | 1 |
| 9 | | SUMP PLATE | 525-21471-00-39 | 1 |
| 10 | | BOLT | 97301-08018 | 4 |
| 11 | | SPRING WASHER | 92901-08100 | 4 |
| 12 |  | WASHER | 92901-08600 | 4 |
| 13 | | PLASTIC LEFT SIDE COVER (New Portuguese Orange) | 525-21711-10 | 1 |
| 14 | | DECAL | 525-21787-10 | 1 |
| 15 |  | SIDE COVER KNOB | 371-21714-00 | 1 |
| 16 |  | GROMMET (371-21747-00) | 90480-01141 | 1 |
| 17 |  | SIDE COVER GROMMET | 90480-12053 | 2 |
| 18 | | TOOL BOX COVER | 461-28171-00 | 1 |
| 19 |  | TOOL BOX KNOB | 434-28172-00 | 1 |
| 20 |  | SPRING | 90501-10187 | 1 |
| 21 |  | NUT | 90179-06036 | 1 |
| 22 | | SPLIT PIN | 91401-30040 | 1 |
| 23 | | CLAMP | 90462-08022 | 1 |
| 24 |  | PANHEAD SCREW | 92501-06012 | 1 |
| 25 |  | SPRING WASHER | 92901-06100 | 1 |
| 26 |  | TOOL KIT | 525-28100-10 | 1 |
