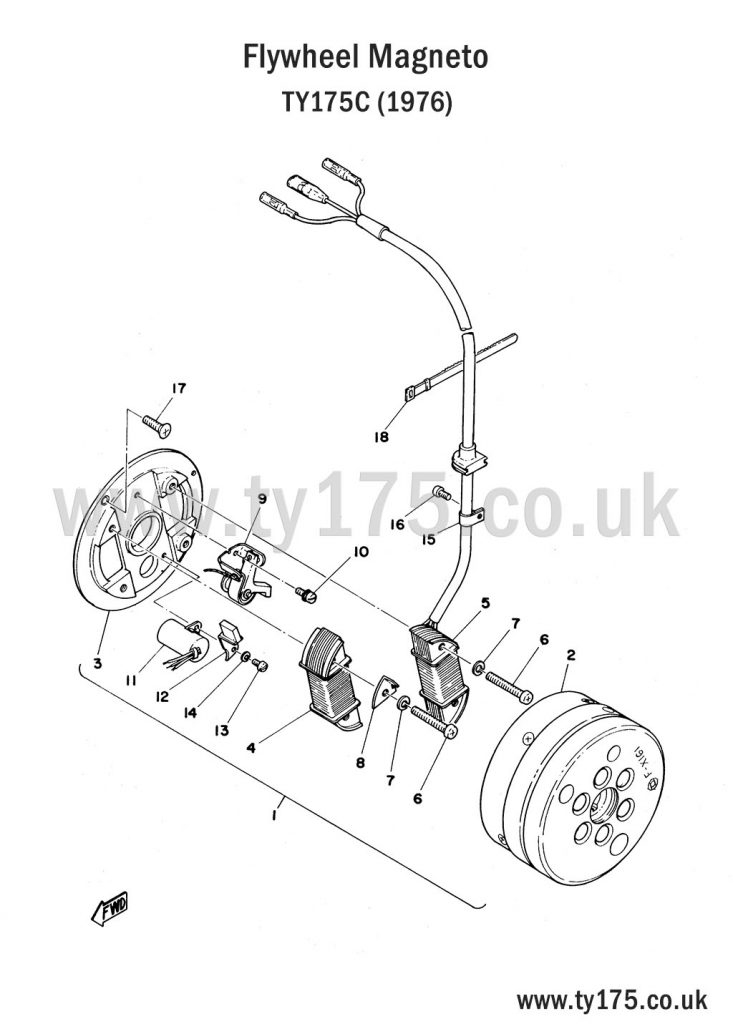

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | FLYWHEEL MAGNETO ASSEMBLY (STATOR) | 525-81300-11 | 1 |
| 2 | | ROTOR ASSEMBLY | 525-81350-10 | 1 |
| 3 | | MAGNETO BASE | 525-81309-10 | 1 |
| 4 | | SOURCE COIL | 461-81312-10 | 1 |
| 5 | | LIGHTING COIL | 525-81313-10 | 1 |
| 6 |  | PANHEAD SCREW | 98501-05035 | 4 |
| 7 |  | SPRING WASHER | 92901-05100 | 4 |
| 8 | | TIMING PLATE | 434-81332-10 | 1 |
| 9 |  | CONTACT BREAKER (POINTS) | 434-81321-10 | 1 |
| 10 |  | PANHEAD SCREW | 110-81346-21 | 1 |
| 11 |  | CONDENSER | 207-81326-10 | 1 |
| 12 |  | LUBRICATOR | 207-81331-10 | 1 |
| 13 |  | PANHEAD SCREW | 164-81246-21 | 1 |
| 14 |  | SPRING WASHER | 92901-04100 | 1 |
| 15 |  | LEAD CLAMP | 109-81328-10 | 1 |
| 16 | | PANHEAD SCREW | 164-81246-21 | 1 |
| 17 | | FLATHEAD SCREW | 92701-06012 | 2 |
| 18 |  | SWITCH CORD BAND | 168-83936-01 | 1 |
