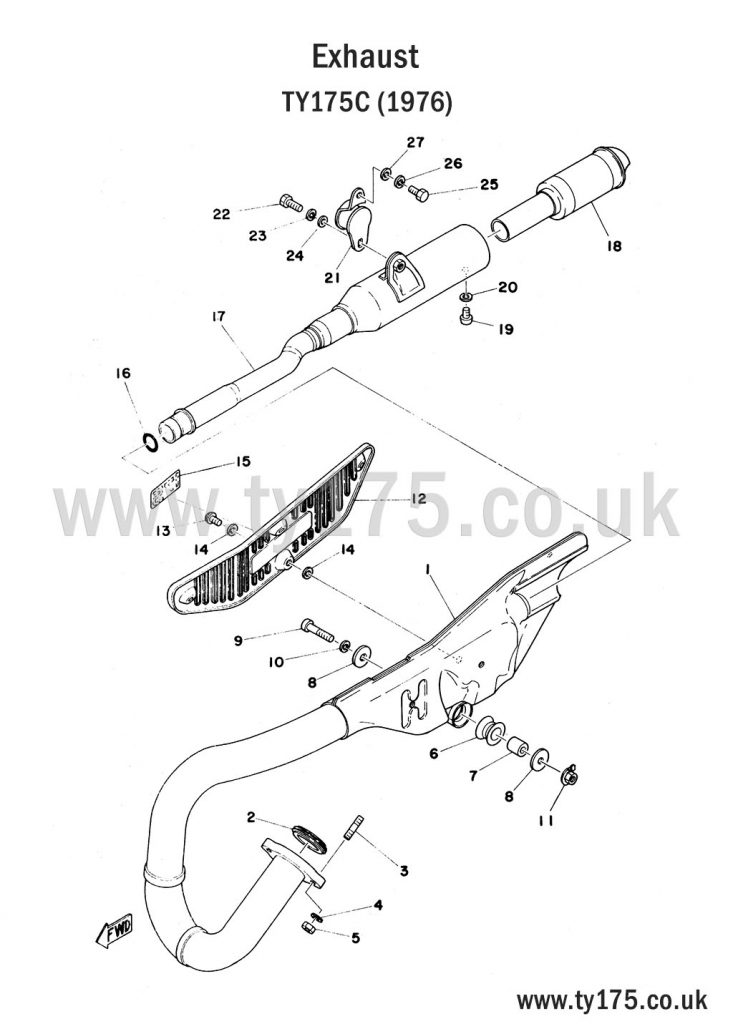

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | EXHAUST PIPE ASSEMBLY | 525-14610-01 | 1 |
| 2 |  | EXHAUST PIPE GASKET | 152-14613-00 | 1 |
| 3 |  | STUD BOLT (306-11179-00) | 90116-06016 | 2 |
| 4 |  | SPRING WASHER | 92901-06100 | 2 |
| 5 |  | NUT | 95301-06600 | 2 |
| 6 |  | REAR DAMPER | 168-21639-00 | 1 |
| 7 |  | COLLAR (8.3-15-15) | 90387-08258 | 1 |
| 8 |  | WASHER (611-48556-30) | 90201-08113 | 2 |
| 9 |  | BOLT | 97301-08035 | 1 |
| 10 |  | SPRING WASHER | 92901-08100 | 1 |
| 11 | | NUT | 525-14681-00 | 1 |
| 12 | | MUFFLER PROTECTOR | 525-14718-00-U2 | 1 |
| 13 |  | SCREW (BLIND) | 91903-06010 | 4 |
| 14 |  | WASHER (178-14766-00) | 90202-06010 | 8 |
| 15 | | DECAL | 525-14729-10 | 1 |
| 16 |  | O-RING | 93210-19026 | 1 |
| 17 | | SILENCER | 525-14753-00 | 1 |
| 18 |  | SILENCER | 434-14752-00 | 1 |
| 19 |  | PANHEAD SCREW | 92501-06010 | 1 |
| 20 | | SPRING WASHER | 92901-06100 | 1 |
| 21 | | SILENCER STAY | 363-14782-10 | 1 |
| 22 | | BOLT | 97301-08018 | 1 |
| 23 | | SPRING WASHER | 92901-08100 | 1 |
| 24 |  | WASHER | 92901-08200 | 1 |
| 25 |  | BOLT | 97301-06015 | 1 |
| 26 | | SPRING WASHER | 92901-06100 | 1 |
| 27 |  | WASHER | 92901-06200 | 1 |
