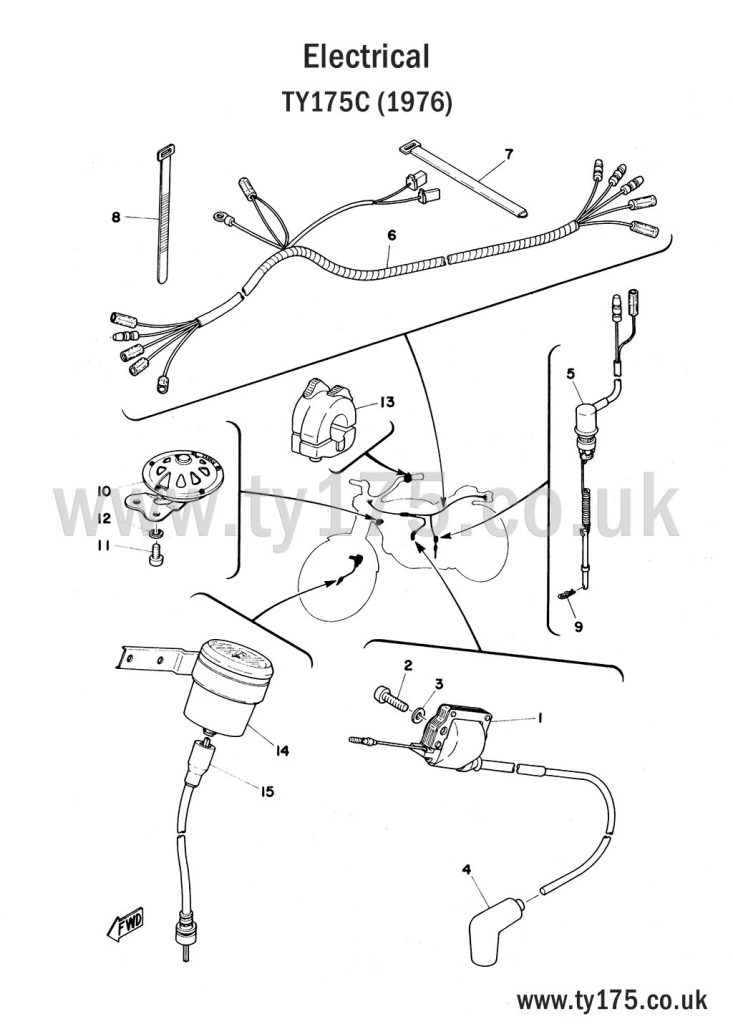

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | IGNITION COIL ASSEMBLY | 525-82310-40 | 1 |
| 2 |  | PANHEAD SCREW | 92501-06025 | 2 |
| 3 |  | WASHER | 92901-06200 | 2 |
| 4 |  | PLUG CAP ASSEMBLY | 294-82370-00 | 1 |
| 5 | | STOP SWITCH ASSEMBLY | 525-82530-00 | 1 |
| 6 | | WIRE HARNESS ASSEMBLY | 525-82590-50 | 1 |
| 7 |  | CABLE TIE | 168-83936-00 | 1 |
| 8 |  | CABLE TIE | 341-26397-01 | 2 |
| 9 |  | R CLIP (102-25375-00) | 90468-12007 | 1 |
| ALTERNATIVE PARTS | ||||
| 10 | | HORN | 434-83380-10 | 1 |
| 11 |  | PANHEAD SCRERW | 92501-06012 | 2 |
| 12 |  | SPRING WASHER | 92901-06100 | 2 |
| 13 | | HANDLEBAR SWITCH | 434-83973-00 | 1 |
| 14 |  | SPEEDOMETER ASSEMBLY | 434-83510-10 (Km/h) | 1 |
| 14 | | SPEEDOMETER ASSEMBLY | 434-83510-30 Mile/h) | 1 |
| 15 |  | SPEEDOMETER CABLE ASSEMBLY | 434-83550-00 | 1 |
