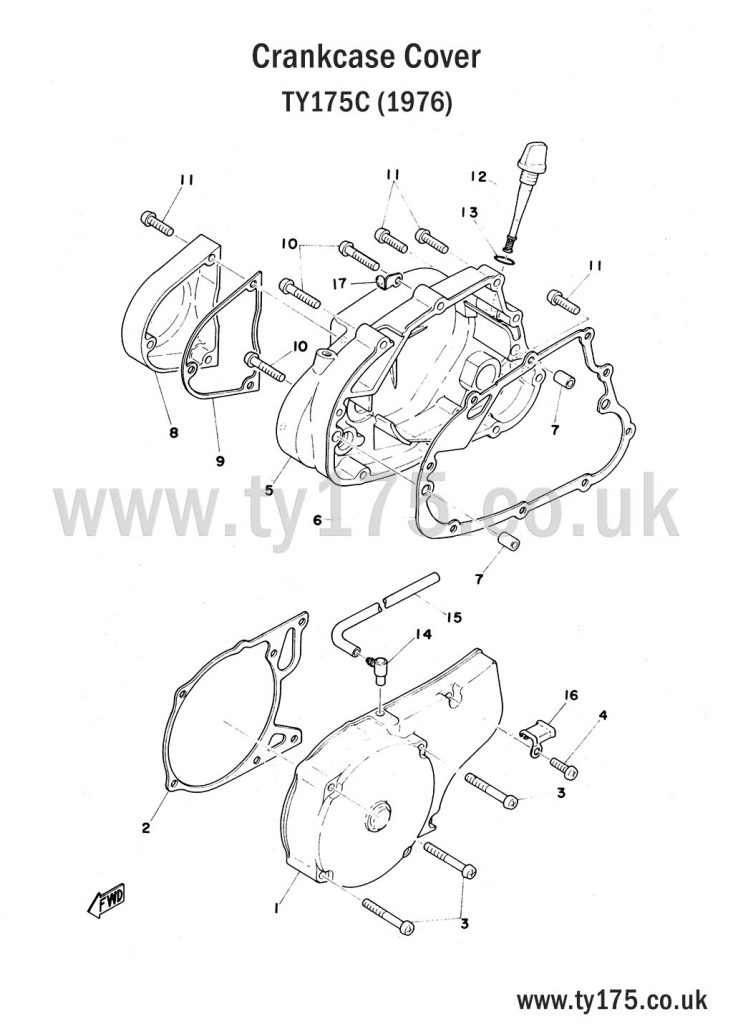

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | CRANKCASE COVER (L/H) | 525-15411-00 | 1 |
| 2 |  | CRANKCASE COVER GASKET (L/H) | 525-15455-00 | 1 |
| 3 |  | PANHEAD SCREW | 92501-06050 | 4 |
| 4 |  | PANHEAD SCREW | 92501-06020 | 1 |
| 5 | | CRANKCASE COVER (R/H) | 525-15431-00 | 1 |
| 6 |  | CRANKCASE COVER GASKET (R/H) | 401-15451-00 | 1 |
| 7 |  | DOWEL PIN (6.4-10-14) | 91810-02015 | 2 |
| 8 | | OIL PUMP COVER | 525-15416-00 | 1 |
| 9 |  | OIL PUMP COVER GASKET | 402-15456-00 | 1 |
| 10 | | PANHEAD SCREW | 92501-06035 | 5 |
| 11 | | PANHEAD SCREW | 92501-06025 | 7 |
| 12 | | OIL LEVEL FILLER PLUG | 525-15362-01 | 1 |
| 13 |  | OIL LEVEL FILLER PLUG 0-RING (A-2.4-13.8) | 93210-14104 | 1 |
| 14 |  | BREATHER | 498-15371-00 | 1 |
| 15 | | BREATHER PIPE (395-14197-00 4.2-310) | 90445-07177 | 1 |
| 16 |  | CLAMP | 90461-10016 | 1 |
| 17 | | CLAMP | 90465-10074 | 1 |
