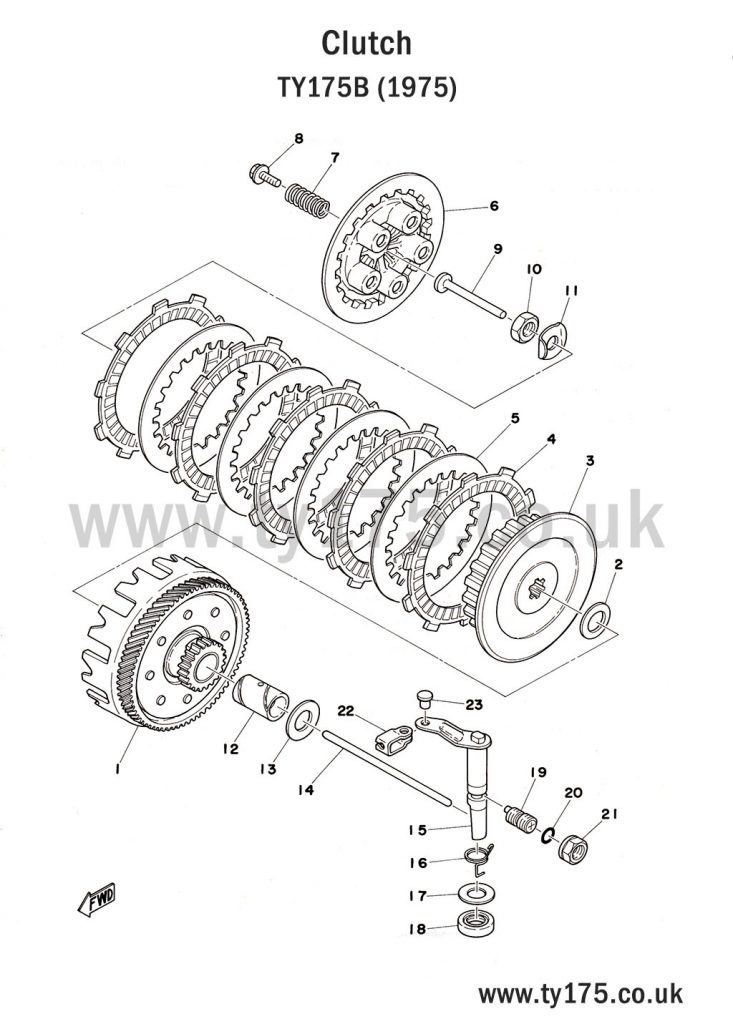

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 0 |  | CLUTCH ASSEMBLY | 525-16301-00 | 1 |
| 1 |  | PRIMARY DRIVEN GEAR COMP. (74T) | 525-16150-00 | 1 |
| 2 |  | THRUST PLATE WASHER | 122-16164-00 | 1 |
| 3 | | CLUTCH BOSS | 525-16371-00 | 1 |
| 4 |  | FRICTION PLATE(S) | 525-16321-00 | 5 |
| 5 |  | CLUTCH PLATE(S) | 137-16325-70 | 4 |
| 6 |  | PRESSURE PLATE | 525-16351-00 | 1 |
| 7 |  | COMPRESSION SPRING (132-16333-00) | 90501-20125 | 5 |
| 8 |  | BOLT | 90119-05001 | 5 |
| 9 |  | PUSH ROD 1 | 137-16356-00 | 1 |
| 10 |  | NUT (137-16377-00) | 90170-12060 | 1 |
| 11 |  | LOCKING WASHER | 90215-12007 | 1 |
| 12 |  | SPACER | 90560-17147 | 1 |
| 13 | | WASHER (17.2-31-2.5) | 90201-17543 | 1 |
| 14 |  | PUSH ROD 2 | 525-16357-00 | 1 |
| 15 |  | PUSH LEVER ASSEMBLY | 525-16382-00 | 1 |
| 16 |  | TORSION SPRING (401-16345-00) | 90508-14132 | 1 |
| 17 |  | WASHER (150-25153-00) | 90201-14217 | 1 |
| 18 |  | OIL SEAL (SO-14-25-5) | 93104-14004 | 1 |
| 19 |  | SCREW | 90149-12097 | 1 |
| 20 |  | O-RING (A-2. 4-9. 8) | 93210-10096 | 1 |
| 21 |  | NUT | 90179-12197 | 1 |
| 22 | | JOINT | 214-16389-00 | 1 |
| 23 | | PIN | 90243-06016 | 1 |
