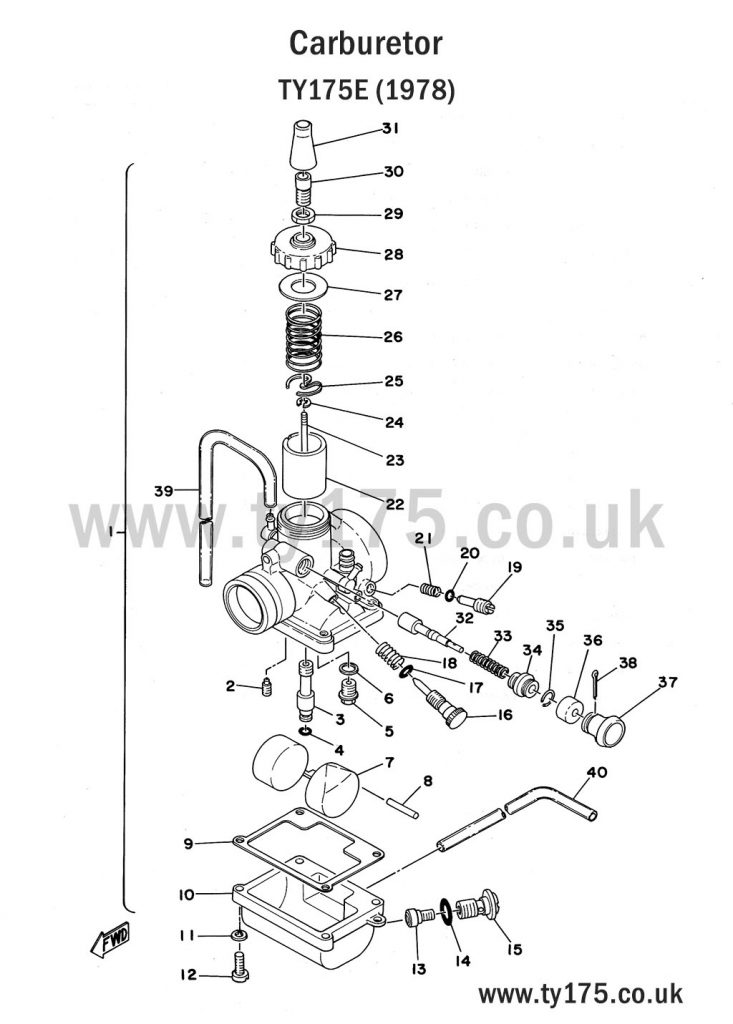

| KEY | IMAGE | DESCRIPTION | MANUFACTURER'S PART NUMBER | Quantity Required |
|---|---|---|---|---|
| 1 |  | CARBURETOR ASSEMBLY | 525-14101-61 | 1 |
| 2 |  | PILOT JET (#25) | 260-14142-25 | 1 |
| 3 | | MAIN NOZZLE (0-0) | 525-14141-30 | 1 |
| 4 |  | O-RING | 214-14147-00 | 1 |
| 5 |  | VALVE SEAT ASSEMBLY | 353-14190-18 | 1 |
| 6 |  | VALVE SEAT WASHER | 127-14195-00 | 1 |
| 7 | | FLOAT | 525-14185-00 | 1 |
| 8 |  | FLOAT PIN | 137-14186-01 | 1 |
| 9 |  | FLOAT CHAMBER GASKET | 304-14184-00 | 1 |
| 10 | | FLOAT CHAMBER BODY | 493-14181-00 | 1 |
| 11 |  | SPRING WASHER | 92901-04100 | 4 |
| 12 |  | PANHEAD SCREW | 98501-04016 | 4 |
| 13 |  | MAIN JET (#230) | 137-14143-46 | |
| 13 |  | MAIN JET (#240) | 137-14143-48 | 1 |
| 13 |  | MAIN JET (#250) | 137-14143-50 | |
| 14 |  | O-RING (1.78-9.28) | 93220-09001 | 1 |
| 15 | | BANJO BOLT | 493-14166-00 | 1 |
| 16 |  | THROTTLE SCREW | 493-14122-00 | 1 |
| 17 |  | O-RING | 361-14147-00 | 1 |
| 18 |  | THROTTLE STOP SPRING | 493-14133-00 | 1 |
| 19 |  | AIR ADJUSTING SCREW | 525-14123-00 | 1 |
| 20 |  | O-RING | 354-14147-00 | 1 |
| 21 |  | AIR ADJUSTING SPRING | 174-14134-00 | 1 |
| 22 | | THROTTLE VALVE (#3.0) | 304-14112-30 | 1 |
| 23 |  | NEEDLE (4L6-4) | 164-14116-06 | 1 |
| 24 |  | CLIP | 164-14137-00 | 1 |
| 25 |  | SPRING SEAT | 137-14136-00 | 1 |
| 26 |  | THROTTLE VALVE SPRING | 276-14131-00 | 1 |
| 27 |  | SPACER | 193-14126-00 | 1 |
| 28 | | MIXING CHAMBER TOP | 525-14158-00 | 1 |
| 29 |  | WIRE ADJUSTING NUT | 802-14161-00 | 1 |
| 30 |  | WIRE ADJUSTING SCREW | 360-14124-20 | 1 |
| 31 | | CAP | 525-14169-00 | 1 |
| 32 |  | STARTER PLUNGER | 304-14171-00 | 1 |
| 33 |  | PLUNGER SPRING | 156-14135-00 | 1 |
| 34 |  | PLUNGER CAP | 152-14174-00 | 1 |
| 35 |  | PLUNGER CLIP | 152-14138-00 | 1 |
| 36 |  | PLUNGER CAP COVER | 132-14173-00 | 1 |
| 37 |  | HOLDER | 304-14261-00 | 1 |
| 38 |  | SPLIT PIN | 91401-16015 | 1 |
| 39 | | AIR VENT PIPE (3.5-175) | 313-14197-00 | 2 |
| 40 |  | OVER FLOW PIPE (5-160) | 183-14196-00 | 1 |
